single girder 5 ton overhead crane price
The lifting capacity is 1-20t
the span is 7.5-22.5m
the working level is A3～A5
the working environment temperature is in the range of -25°C～40°C.
Description
1. single girder overhead crane is widely used in factory store house and cargo yard,forbid to be used in corrosive and explosive places.This crane belongs to light duty crane, single girder 5 ton overhead crane price can be used with CD1 and MD1 hoist.
2. Two operational methods: ground or operational room. (open model and closed model, can be installed on left or right side according to the practical situation )
Overhead crane parameters
| Mechanism | | Item | Unit | Result |
| Item | | |
| Lifting capacity | ton | 1-30ton |
| Working grade | | A3-A5 |
| Span | m | 7.5-31.5m |
| Working environment temperture | °C | -25~40 |
| Travelling mechanism | working speed | m/min | 20-75 |
| motor | type | | ZDY1 21-4 | ZDR 100-4 |
| power | kw | 2*0.8 | 2*1.5 |
| rotational speed | m/min | 1380 |
| Lifting mechanism | lifting speed | m/min | 8/0.8(7/0.7) 3.5(3.5/0.35) 8(7) |
| lifting height | H(m) | 6 9 12 18 24 30 |
| travelling speed | m/min | 20 30 |
| working system | A3-A5 |
| power source | three-phase 380V 50HZ |
Our advantages
1.We have the most competitive price in the industry.
2.Design rules for cranes GB/T3811-2008.Safety rules for lifting appliances GB6067.1-2010.
3. Eleven safety systems will ensure your safety.
4.It is widely used in plants, warehouse, and material stocks to lift goods.
5.Customized services such as lifting capacity and lifting height will meet your needs to the greatest extent.
6. Perfect pre-sale and after-sale service to slove your worries.
Overhead crane safety devices
✔ Weight overload protective device
✔ Top quality polyurethane buffer
✔ Crane traveling limit switch and lifting limit switch
✔ Low voltage protection function
✔ Emergency stop system

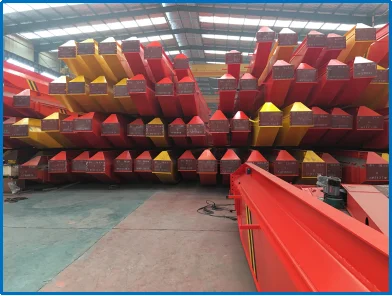

Overhead crane parts detais
 |  |  |
| Main Girder | Crane Hook | End Girder |
 |  |  |
| Lifting Mechanism | Remote Control | Slip line |
crane ready to China port for shippment
crane loading at China port
Crane arrived User's factory User do installation
If you need heavy capacity crane , more than 20 tons , Can choose double girder overhead crane!
Contact Supplier Get latest Price
If you want to inquire about our single girder 5 ton overhead crane price, please confirm with us the details as below.
Then we will quote you a suitable price more quickly
1. Lift capacity (3t 5t 10t or others)
2. Span (3m 5m 9m or others)
3. Lift height (Warehouse width)
4. Power supply in your local (380V/50HZ/3Phase or others)
6. Nearest port
7. What kind of goods will this crane lift
Overhead crane parameters
If you need customization, please contact us.
